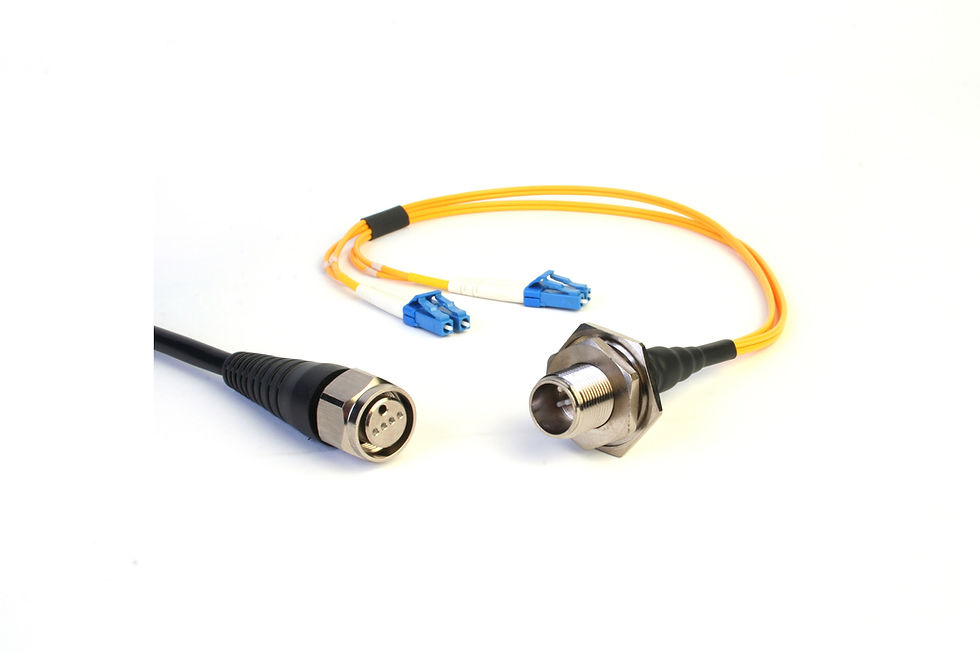

Amphenol's harsh environment AARC plug and receptacle assemblies are available in 2-fiber or 4-fiber configurations. Based on the N-Type RF threaded connector housing, this interconnect system provides superior optical performance in outdoor environments using LC-style 1.25mm ceramic ferrules.



The corrosion resistant metal housings provide a durable and environmentally protected solution for optical connectivity in areas exposed to elements such as rain, snow, dirt, and other types of contamination.



Factory-terminated AARC assemblies are available in plug, receptacle, and in-line connector styles, and can be supplied as pigtails or jumpers in lengths starting from 1 meter. Factory-terminated AARC receptacle assemblies are available with flange, jam-nut, or in-line configurations. Amphenol’s AARC connectors are exceptionally suited for WiMax, LTE, 3G/4G/5G wireless, and base station applications.

AARC

CABLE ASSEMBLIES

Applications

  • Blind mate and keyed

  • Provides superior weather resistance for harsh outdoor applications

  • N Type connector housing

  • Metal housing provides improved EMI protection

  • Easily installs without special tooling

Benefits

  • IP67 water and dust protection

  • Available with singlemode or multimode fiber

  • Flange, Jam-Nut, or In-Line type receptacle assemblies

  • Durability: 50 mating cycles

  • Operating temperature: -40° to 75°C

  • RoHS compliant

  • 445 N (100lbs) cable retention

  • Threaded style coupling

Features

Insertion Loss:

≤ 0.15dB Typical Singlemode

≤ 0.50dB Typical Multimode

Return Loss:

Ultra (UPC) ≤ -55dB*

Durabilty:

< 0.2dB change, 50 mating cycles

Temperature:

<0.3dB change, -40 to +85°C

Specifications

942-98140-10001
942-98155-10001
942-98156-10001
942-98157-10001
942-98302-10001
942-98159-10001
942-98161-10001
942-98162-10001
942-98302-10001
927-3039
927-3124
927-308

JUMPER, AARC 2F PLUG-LC(D), SM, 1M

JUMPER, AARC 4F PLUG-2X LC(D),4F 0.5M BREAKOUT, SM, 1M

JUMPER, AARC 2F IN-LINE RECEPTACLE TO LC DUPLEX, 1M

JUMPER, 4F AARC IN-LINE RECPT TO LC(D), SM, 1M

JUMPER, AARC 2F PLUG TO PLUG, SM 4.8MM CABLE, 1M

JUMPER, 2F AARC RECPT TO LC(D), 1M ZIP

JUMPER, 4F AARC RECPT(F)-LC(D), SM 0.5M BO

JUMPER, 2F AARC RECPT(N)-LC(D), SM 0.5M BO

JUMPER, AARC 2F PLUG TO PLUG, SM 4.8MM CABLE, 1M

AARC TORQUE TIGHTENING TOOL

BRACKET, AARC HOLDER, 6 POSITION

BRACKET, AARC HOLDER, 12 POSITION

Ordering Information

KEY FEATURES
