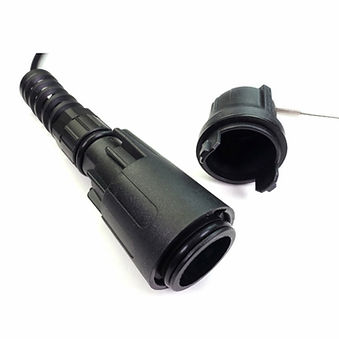

The Amphenol IP-FX is a sealed, outdoor feedthru housing that is designed to provide dust and water protection for assemblies mating to outdoor enclosures and transmission equipment. The IP-FX is suitable to protect several connector types including LC Duplex, RJ45, USB, and others.


The unique design of the IP-FX housing allows it to be supplied on factory terminated (tested cables) or field installed over existing cables such as LC Duplex or RJ45, making it an ideal solution for conversion from legacy systems to newer transmission equipment. IP-FX housing mates to equipment or enclosures that are pre-fitted with the FullAXS® -style receptacle, providing a water and dust sealed interface when mated. Applications include connection to Remote Radio Units (RRU/RRH), FTTA equipment and other outdoor systems.

IP-FX HOUSING

  • Allows flexibility to use factory terminated assemblies or field installed assemblies

  • Provides superior weather resistance for harsh outdoor applications

  • Pass-thru design suitable with various industry standard connector and cable types

  • Easily installs without special tooling

  • Bayonet style coupling

  • Provides bend protection for installation and long term use

  • One handed mating, no torque requirements for proper sealing

Benefits

  • IP67 water and dust protection

  • No installation tools required

  • Durability: 50 cycles

  • Operating temperature: -40° to 75°C

  • Cable Diameter Range: 4.8mm to 7mm

  • 33 lb. axial cable retention (150N)

Features

Specifications

FTTA
Outdoor Areas
Wireless

Harsh Env.

Small Cells

Applications

958-5001-1
958-5001-2

KIT, IP-FX CONNECTOR, FIELD FOR 4.8-6.0MM CABLE
KIT, IP-FX CONNECTOR, FIELD FOR 6.0-8.0MM CABLE

Ordering Information

KEY FEATURES
